Key Features
Self-Serve Stroller Rental
The CCVS allows customers to rent Cuddle Cart strollers using cash or credit cards. Upon returning the stroller to the station, the system automatically dispenses a rebate as an incentive to encourage proper returns.
Durability for Outdoor Use
It is designed specifically for outdoor environments.
Remote Monitoring
The CCVS is equipped with a remote access and monitoring system through Nayax, allowing businesses to manage rentals, returns, cash replenishments, and administrative tasks efficiently.
Space-Efficient Design
The CCVS operates using one detached kiosk (pay station) with one or two tracks. This space-saving design allows the kiosk to fit in any orientation, offering flexibility in installation. The carts can be easily pulled out for rent and pushed in for returns from the same side near the kiosk, minimizing the required footprint.

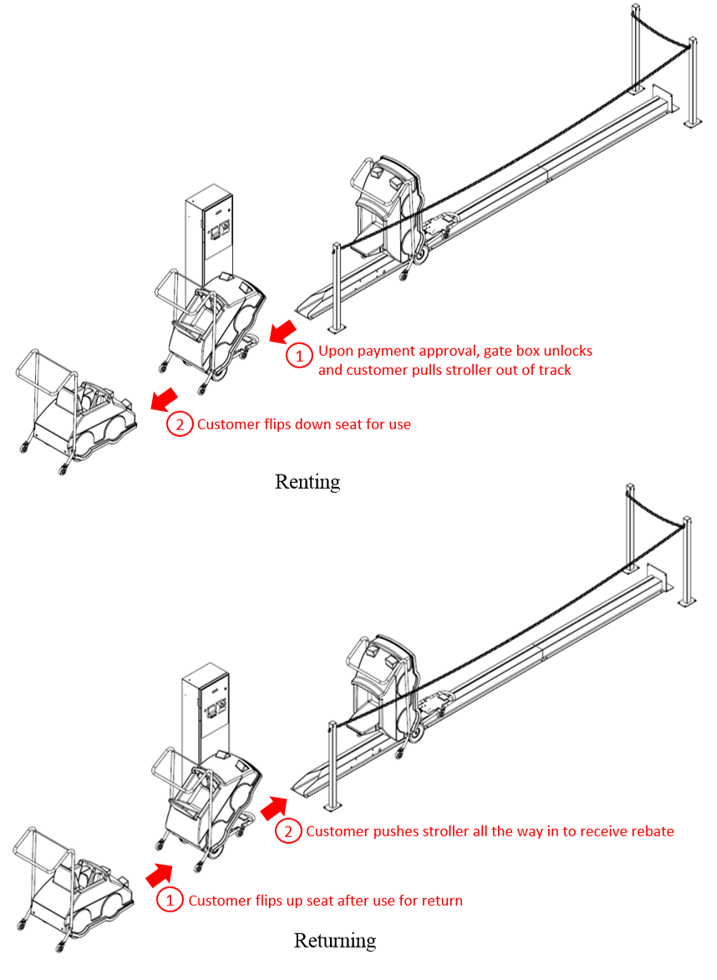

How It Works:
Renting Process (Single Track Model)
- Pay – Choose cash or credit card as your payment method.
- Take the Cart – Pull the cart out from the station.
Renting Process (Dual Track Model)
- Pay – Choose cash or credit card as your payment method.
- Select Cart – Push the button to select the cart type from the track.
- Take the Cart – Pull the cart out from the station.
Returning Process
- Push Cart – Push the cart back into the track.
- Receive Rebate – Get your rebate instantly after returning the cart.

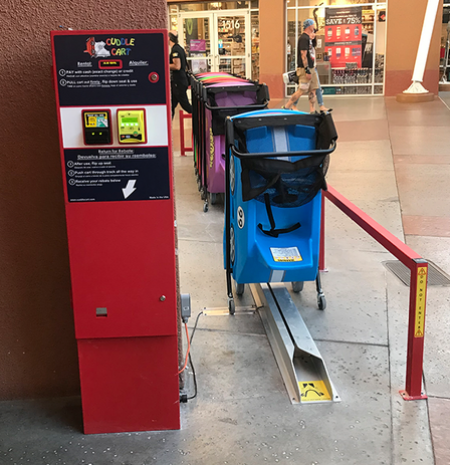

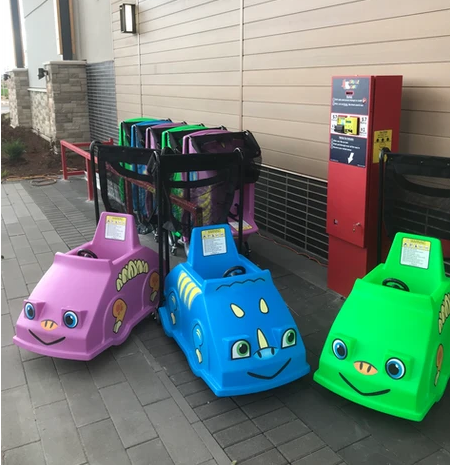

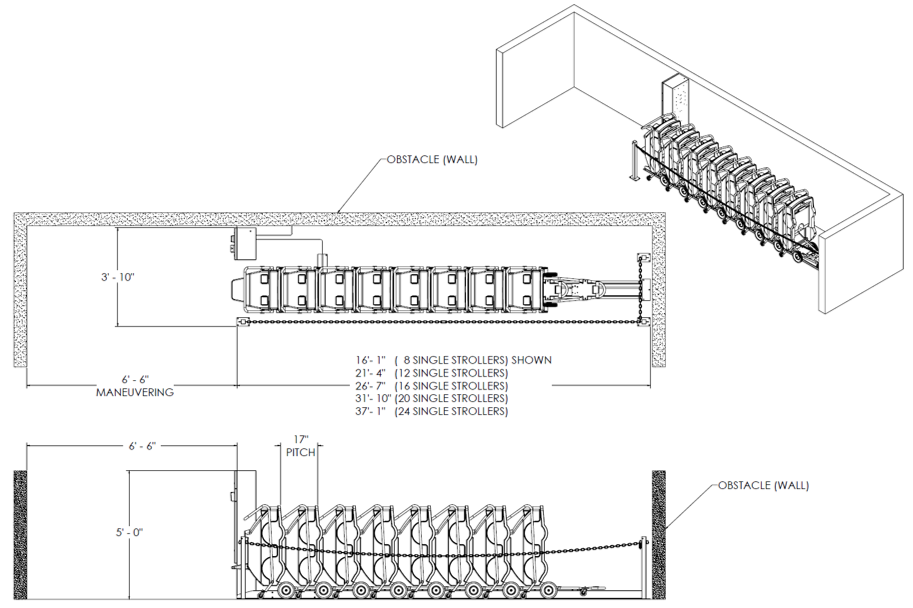

Single Track Kiosk-Outward

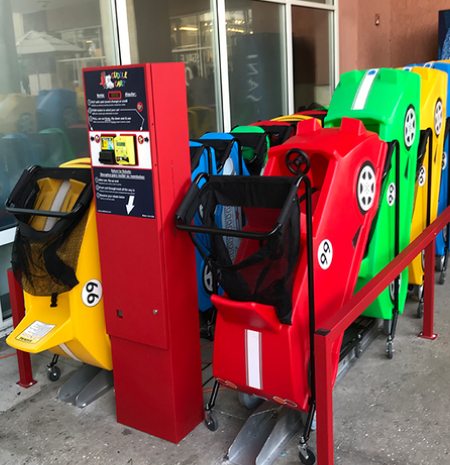

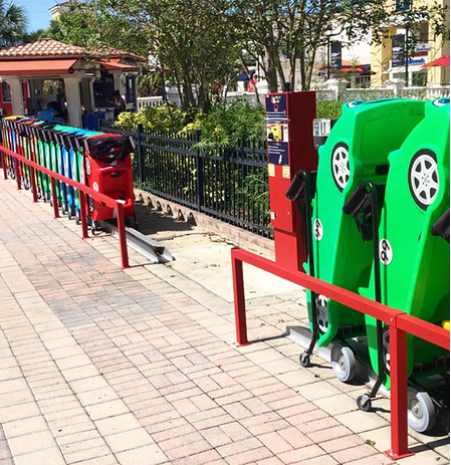

Dual Track Parallel-Side

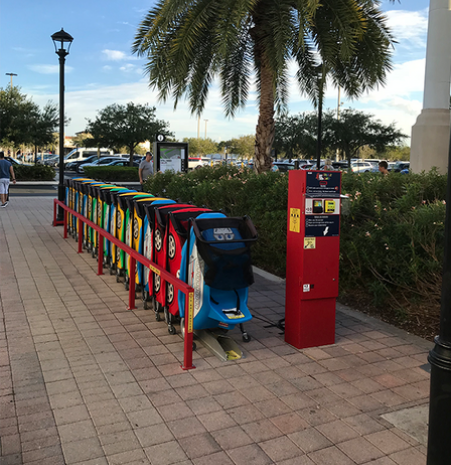

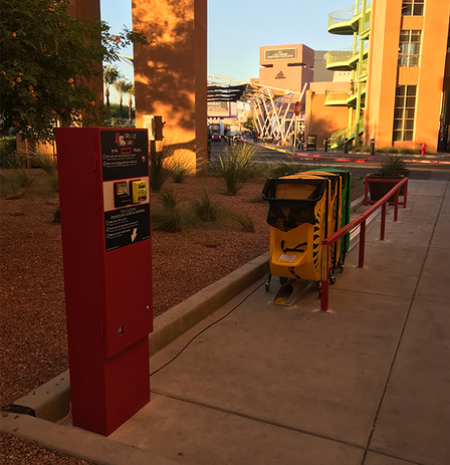

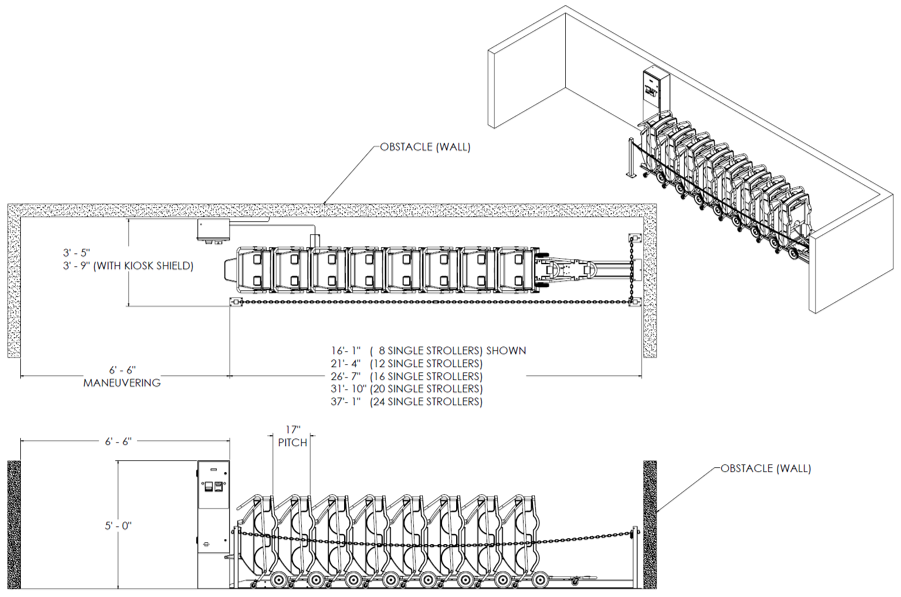

Single Track Kiosk-Sideways

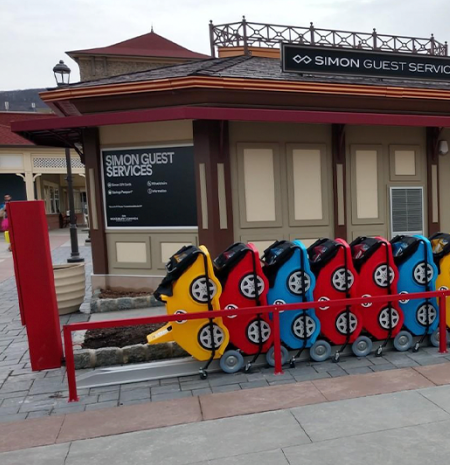

Dual Track Parallel-Side Offset

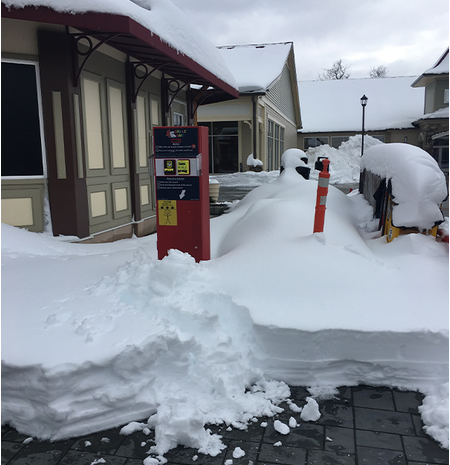

Single Track Kiosk-Outward (shown under weather Condition)

Single Track Kiosk-Sideways

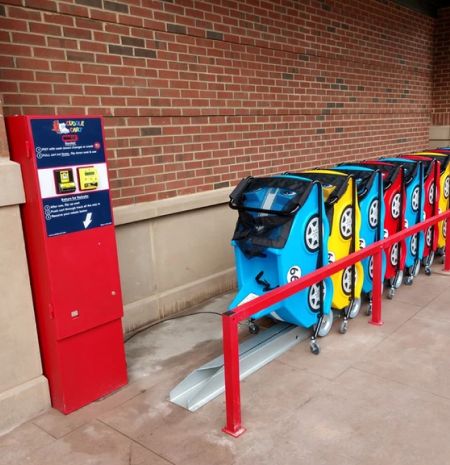

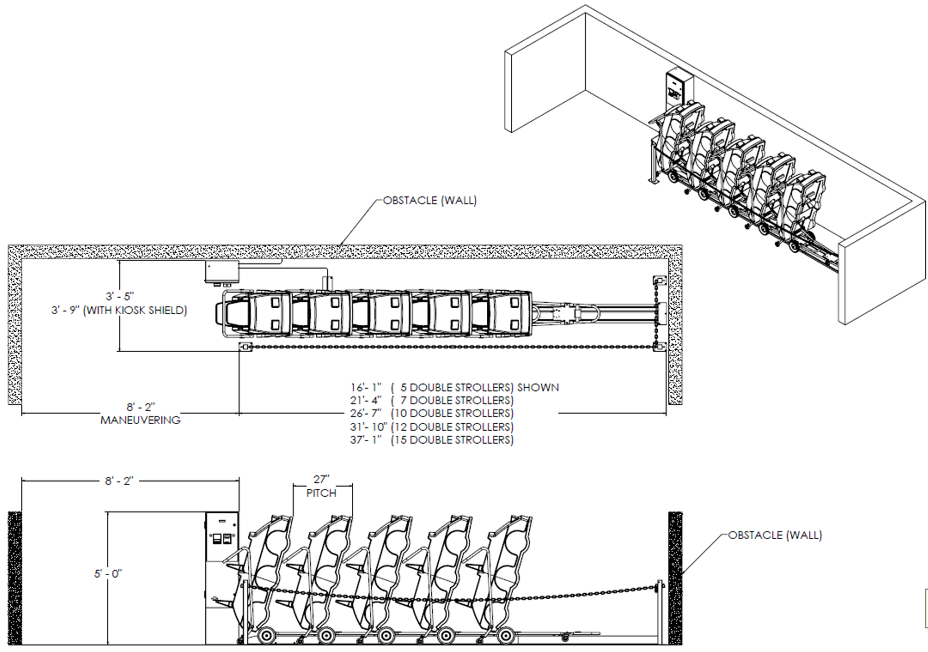

Single Track Kiosk-Outward

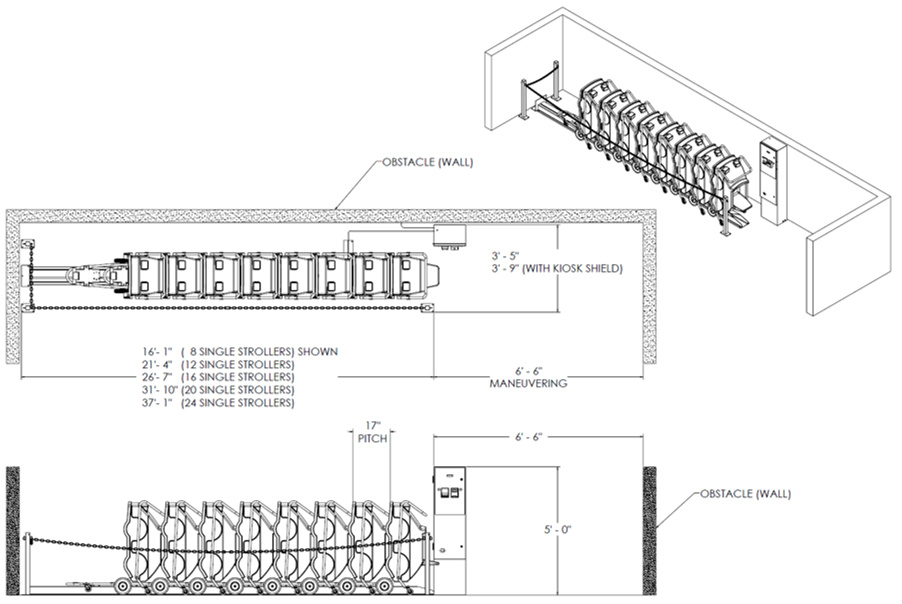

Single Track Kiosk-Sideways

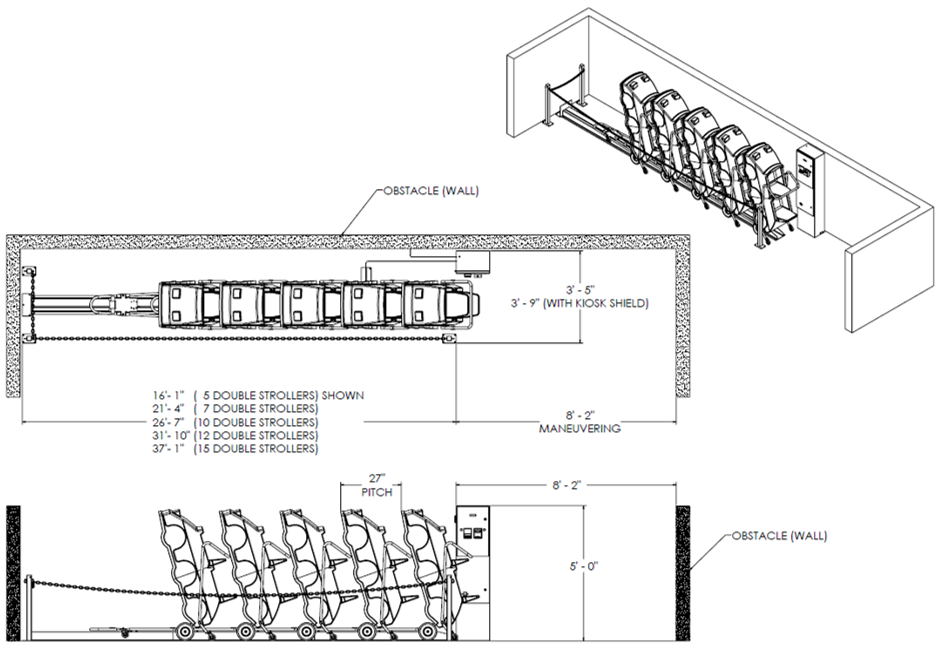

Single Track Kiosk-Outward

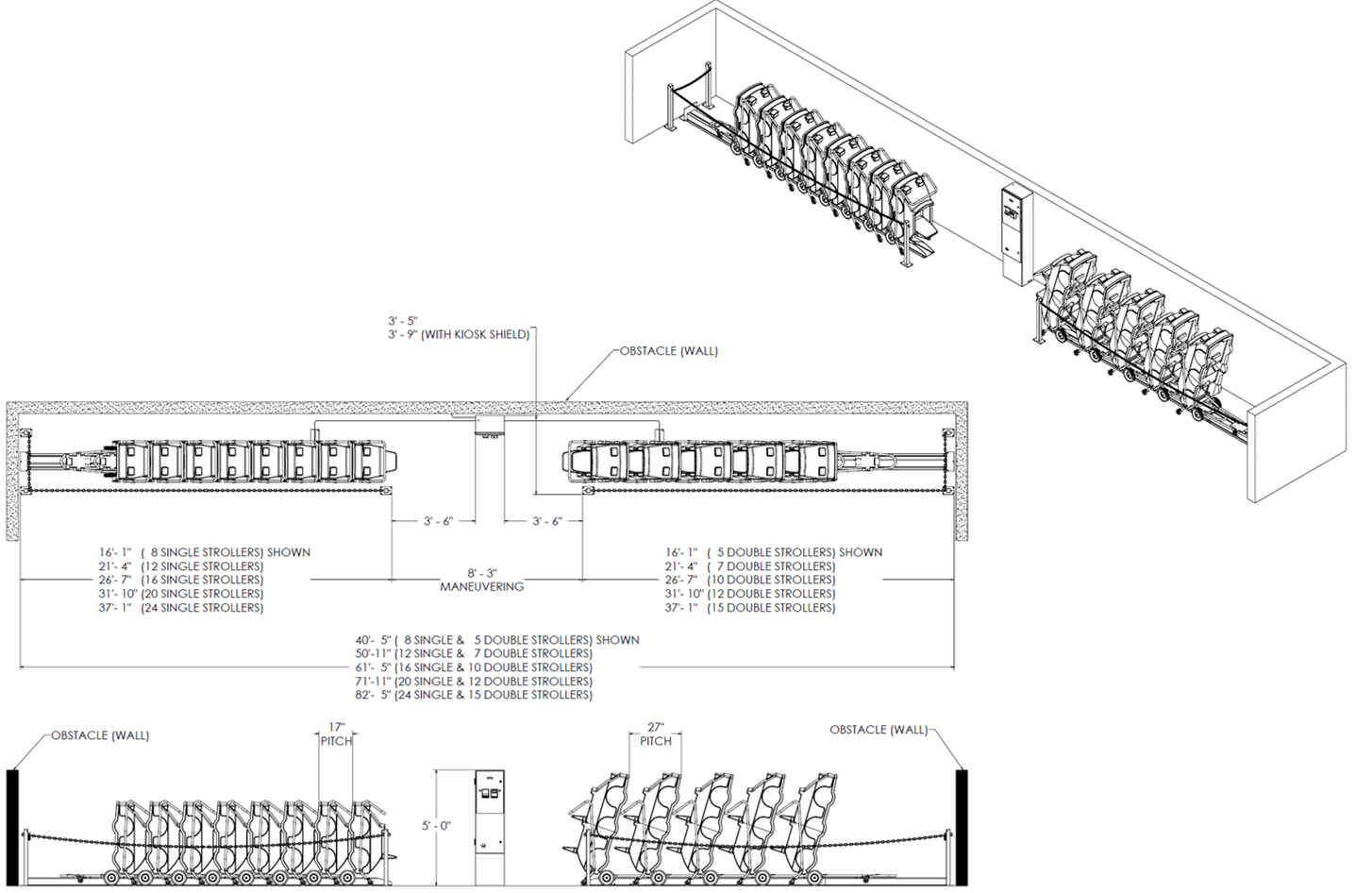

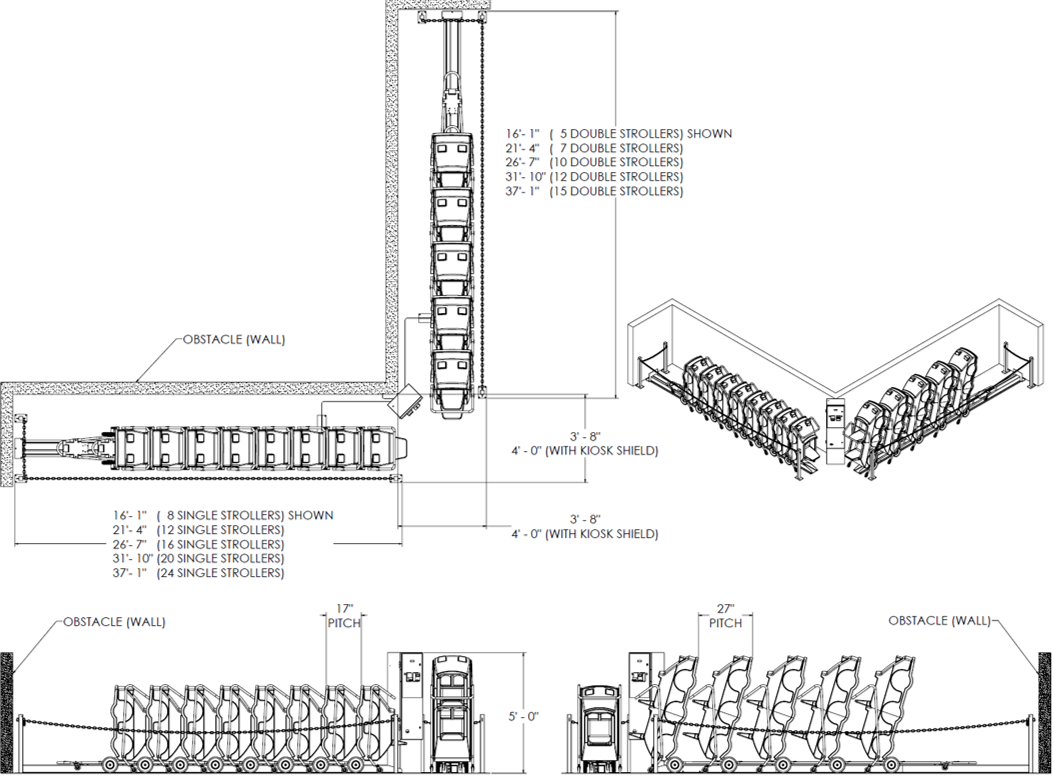

Dual Track In-Line

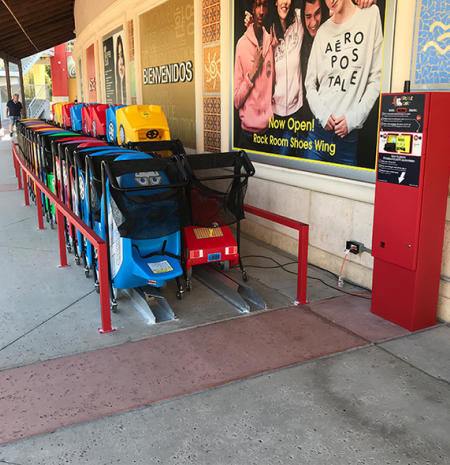

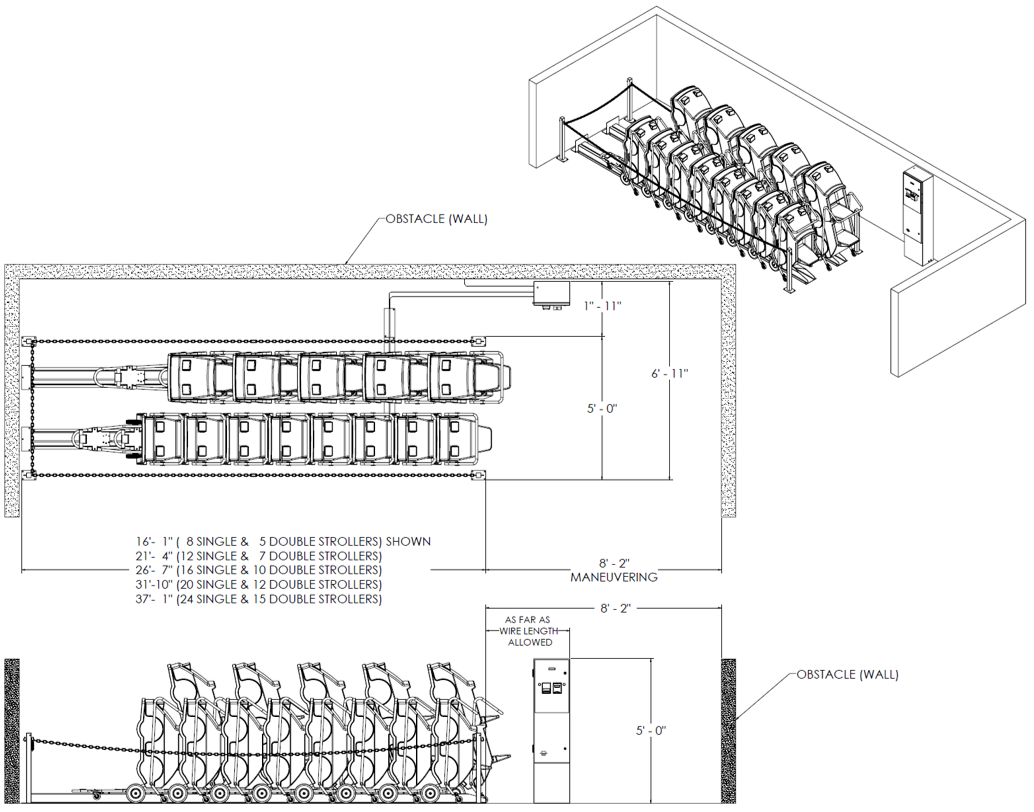

Dual Track Parallel-Side

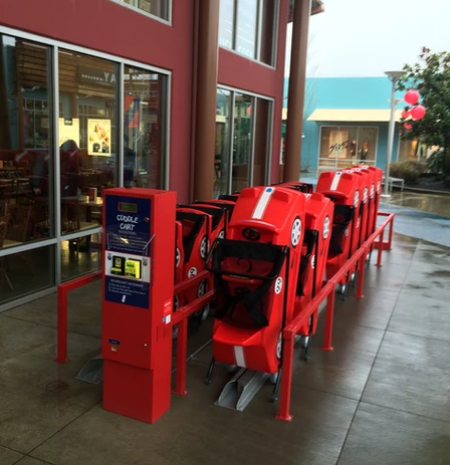

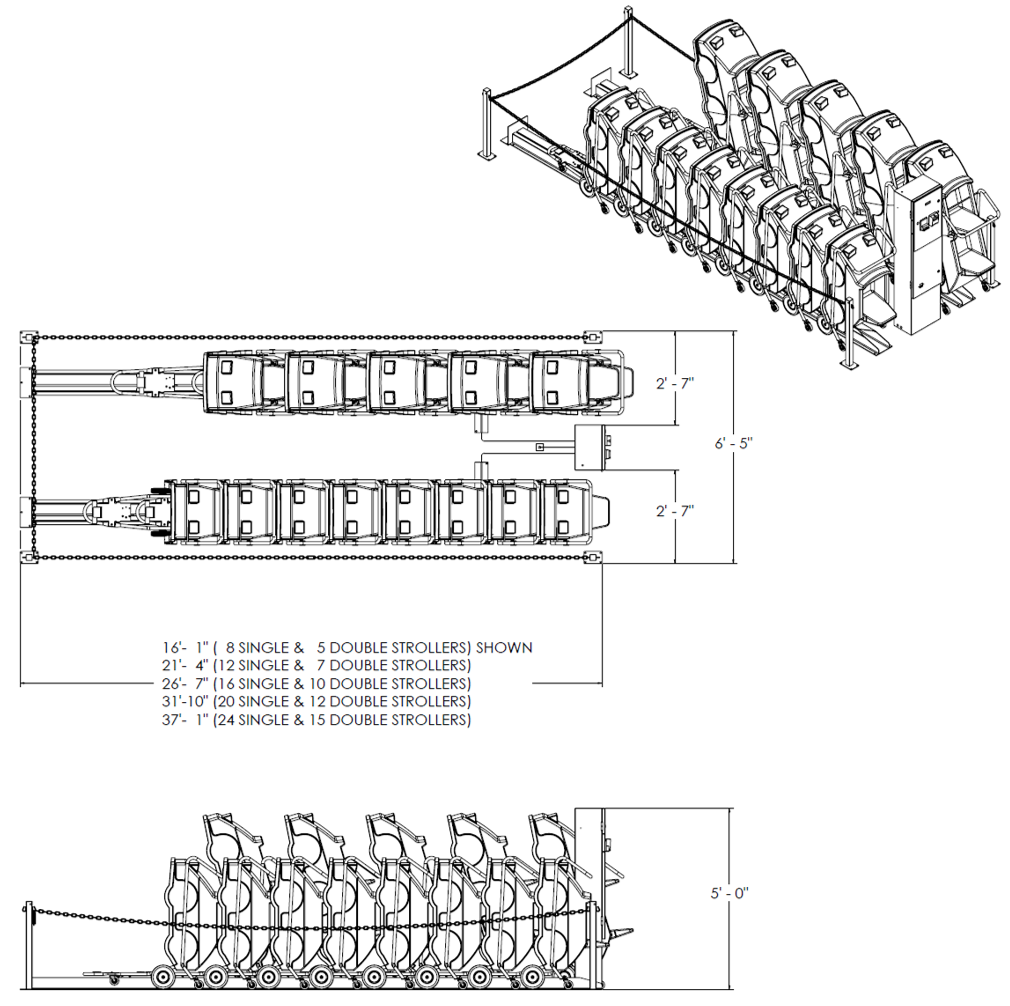

Dual Track Parallel-Side Offset

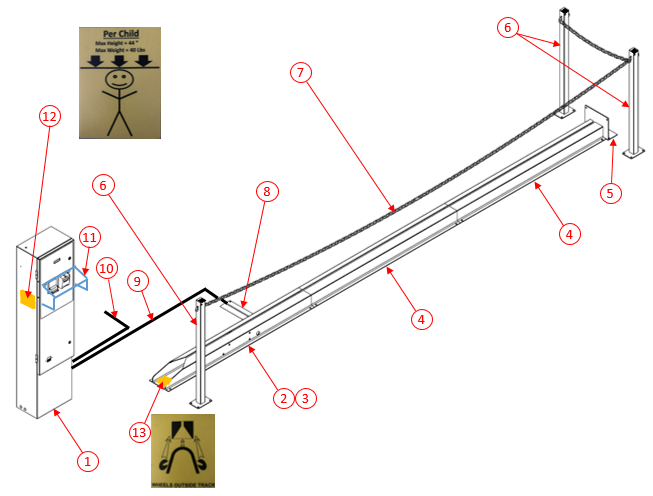

Specifications

- Kiosk (CCVS-KI)
- Track “A” (CCVS-TR-AL shown) or (CCVS-TR-AR)
- Gate Box System (CCVS-GSL) or (CCVS-GSR), located inside Track “A”
- Track “B” (CCVS-TR-B)
- Stroller Stop Plate (CCVS-SR-B)
- End Post (CCVS-SR-A)
- Guard Chain (CCVS-SR-C)
- Wire Harness Ramp Bridge (CCVS-BR)
- Wire from Gate Box System to Kiosk (24VDC 3.0A)
- Electrical Plug (Input power, 110/220 VAC 1.2A)
- Shield (Required when exposed directly to rain & snow)
- Decal (to show maximum weight & height of the child)
- Decal (to show proper return of strollers back into track)

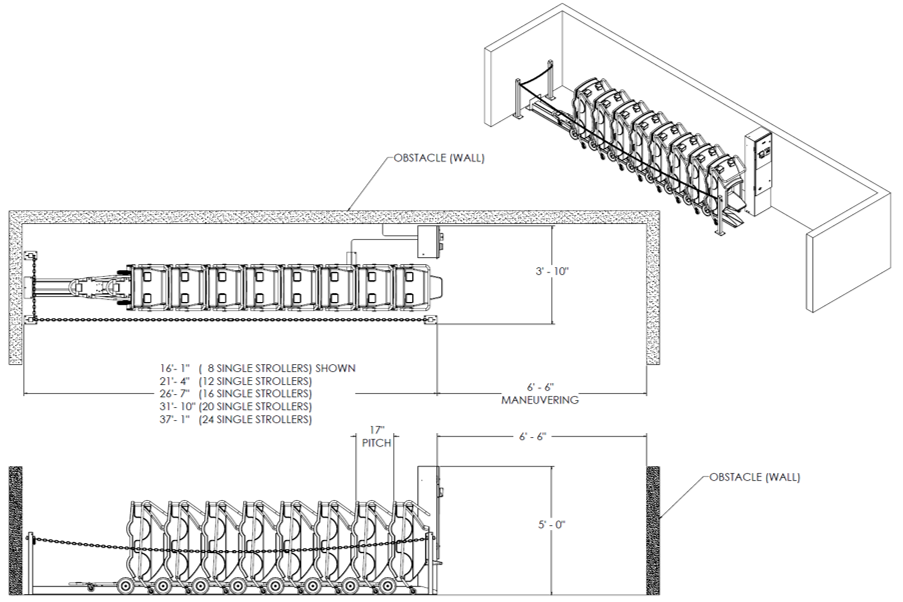

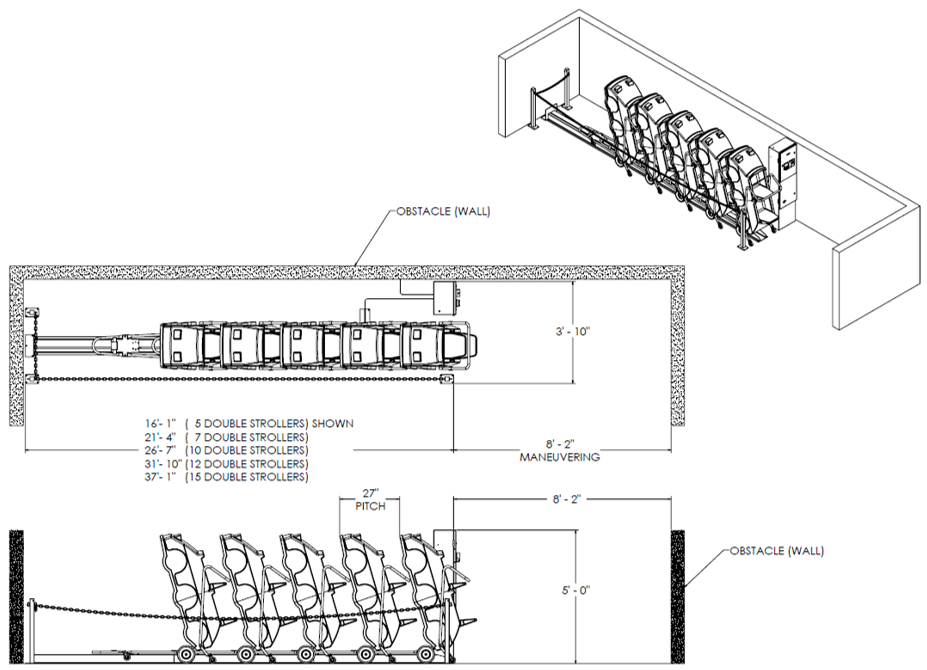

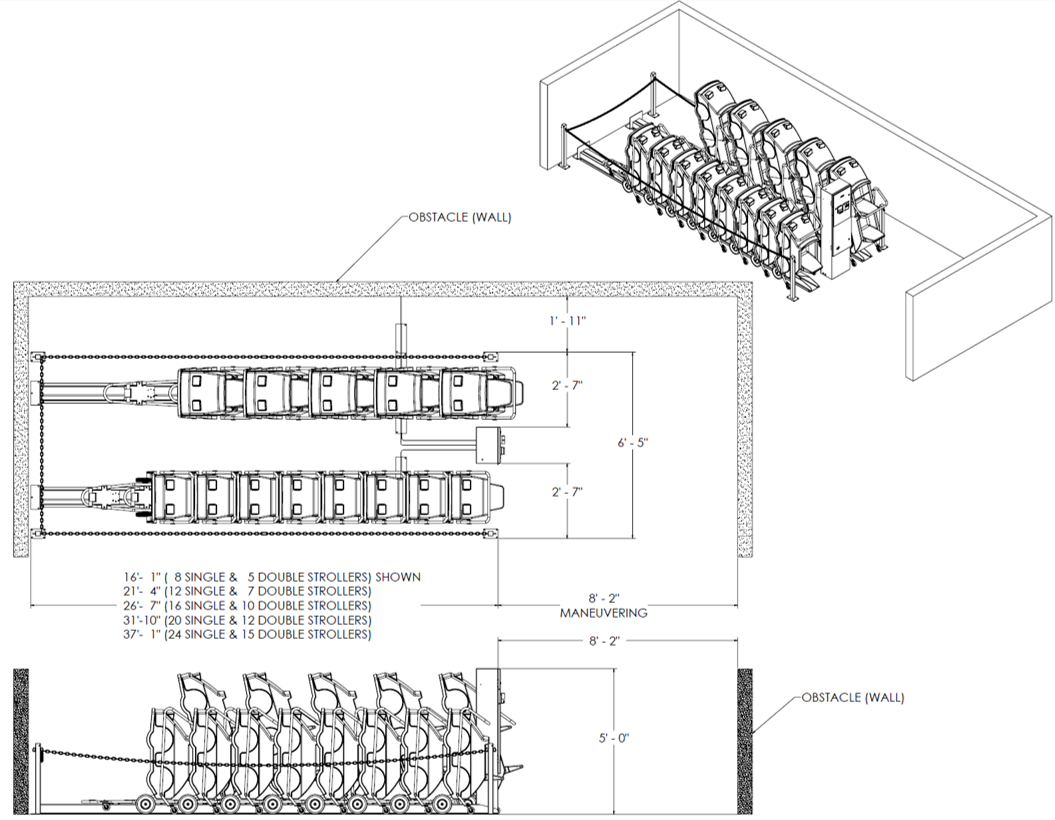

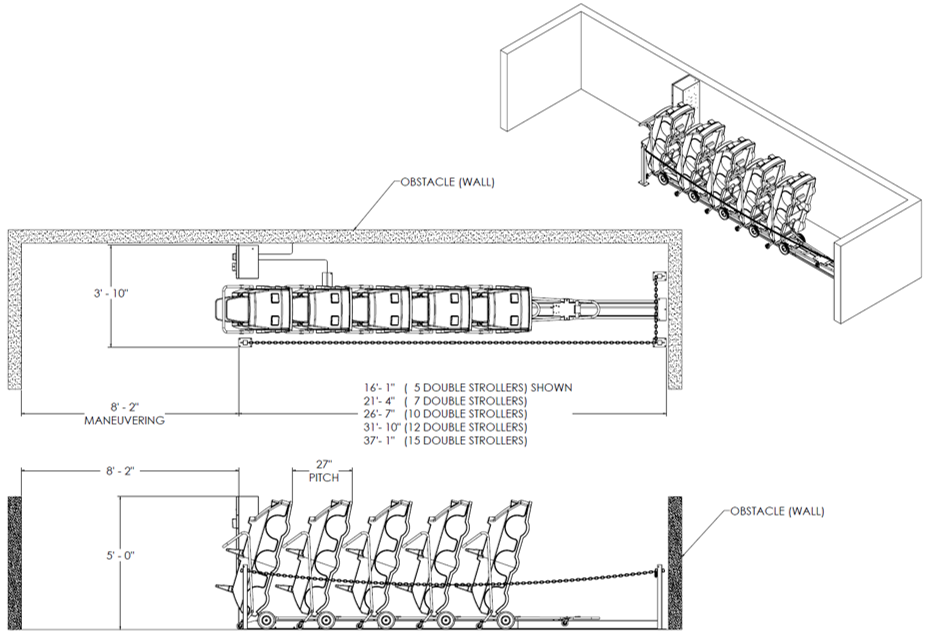

Layout Configurations
